General specifications

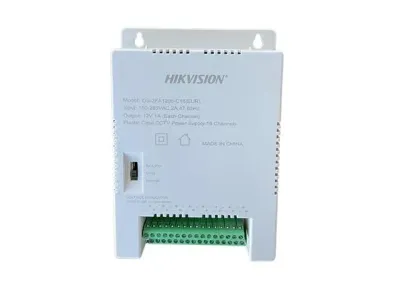

• Model Name: DS-2FA1208-C16

• Product Type: 16-channel switching mode power supply unit (SMPS)

• Application: Designed specifically for CCTV cameras

Electrical characteristics

• Channels: 16 separate power outputs for connecting multiple cameras.

• Output Voltage: 12 VDC.

• Output Current:

  • Maximum 1 A per channel.

  • Maximum total current of 8 A.

• Total Power: 96 W total power (12V x 8A) is indicated on the Hikvision Malaysia website, though some resellers list a lower 60 W.

• Input Voltage: 150 to 285 VAC, with a wide voltage input range for varying power conditions.

• Protections: Includes built-in protection against overcurrent, short circuits, and overvoltage.

• EMC Performance: Engineered for good electromagnetic compatibility (EMC) performance to prevent interference.

Physical and environmental specifications

• Dimensions: 185 mm x 130.6 mm x 35 mm (7.28" x 5.14" x 1.38").

• Color: White.

• LED Indicator: Green LED light to show operational status.

• Operating Conditions: -40°C to 80°C (-40°F to 176°F), with 5% to 95% humidity (non-condensing).

• Installation: Compact size suitable for mounting near cameras.
