Key specifications

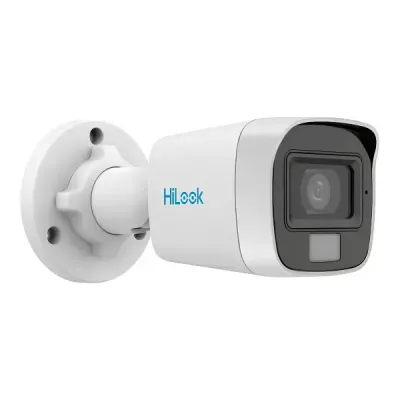

• Model: THC-B129-P

• Image sensor: 2 MP CMOS

• Maximum resolution: 1920 x 1080

• Lens: Fixed focal lens options of 2.8 mm or 3.6 mm. Some retailers also list a 6 mm option.

  • Field of view (2.8 mm):

    102∘102 raised to the composed with power

    102∘

    (horizontal),

    54∘54 raised to the composed with power

    54∘

    (vertical),

    121∘121 raised to the composed with power

    121∘

    (diagonal)

  • Field of view (3.6 mm):

    80∘80 raised to the composed with power

    80∘

    (horizontal),

    43∘43 raised to the composed with power

    43∘

    (vertical),

    95∘95 raised to the composed with power

    95∘

    (diagonal)

• Minimum illumination: 0.001 Lux @ (F1.0, AGC ON). It can achieve 0 Lux with the included white light.

• Night imaging: Provides up to 20 meters of bright night imaging using its supplementary white light.

• Video output: One port that can switch between four analog signals: TVI, AHD, CVI, and CVBS.

• Wide Dynamic Range (WDR): Digital WDR to balance brightness in high-contrast scenes.

• Noise reduction: 3D DNR (Digital Noise Reduction) for clean, sharp images.

• Weatherproof rating: IP66, making it dust-tight and resistant to powerful water jets.

• Operating conditions: Can function in temperatures from

  -40∘Cnegative 40 raised to the composed with power cap C

  −40∘𝐶

  to

  60∘C60 raised to the composed with power cap C

  60∘𝐶

  and humidity of up to 90%.

• Material: Plastic

• Dimensions: 162.7 mm x 70 mm x 70 mm

• Power requirements: 12 VDC ± 25%, with a maximum power consumption of 2.4 W.
